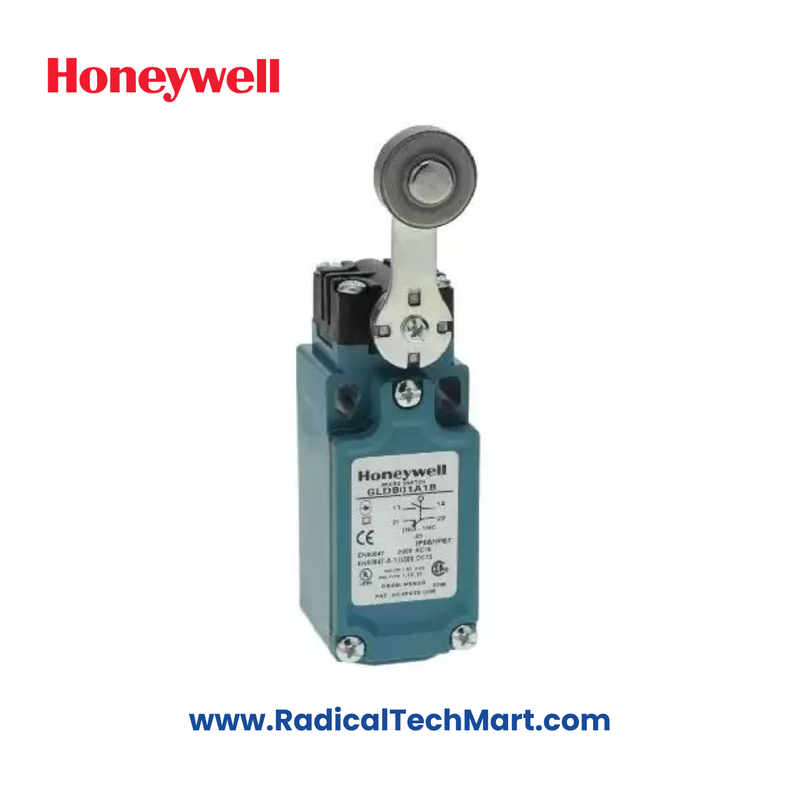

GLDB01A1B Honeywell Limit Switch

Product Description: Honeywell GLDB01A1B

Brand: Honeywell
Model: GLDB01A1B

Actuators:

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

Termination Options:

• 0.5-14 NPT
• PG 13,5
• 20 mm
• PF 1/2
• Deutsch style 4-pin connector
• Other cable/connector options available (contact Honeywell Representative)

Contact Options*:

• GLC Metal Housing and GLD Plastic Housing:
  • 1NC/1NO
  • 2NC
  • 2NO
• GLE Metal Housing:
  • 1NC/1NO
  • 2NC
  • 2NO
  • 2NC/2NO

Contact Type:

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow-action

Contact Material:

• Silver (standard)
• Gold plated (for low-energy applications)

Electrical Ratings:

• Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Voltage: 2.5 kV

Environmental Ratings:

• Sealing:
  • NEMA 1, 4, 12, 13
  • IP66
• Operating Temperature: -40 °C to 85 °C [-40 °F to 185 °F]

Durability:

• Mechanical Life: Up to 10 million cycles
• Max. Actuation Frequency:
  • 250 operations/minute
  • 100 operations/minute (wobble actuators)

Performance:

• Shock Resistance: 50 g (per IEC 60068-2-27)
• Railway Applications: IEC 61373 Class I Car B Type
• Vibration Resistance: 10 g (per IEC 60068-2-6)

Standards and Approvals:

• CE, UKCA, UL, CSA, CCC1
• Conforming to:
  • EN50047
  • IEC/EN 60947-5-1
  • CSA C22.2 #14
  • UL 508
  • CCC1 GB14048.5
  • EN45545-2 (GLC/GLE models)
